Description
9m x 18m x 3m Steel Building Kit
Engineered Excellence | Robust Durability | Custom-Fit Solution
Product Overview

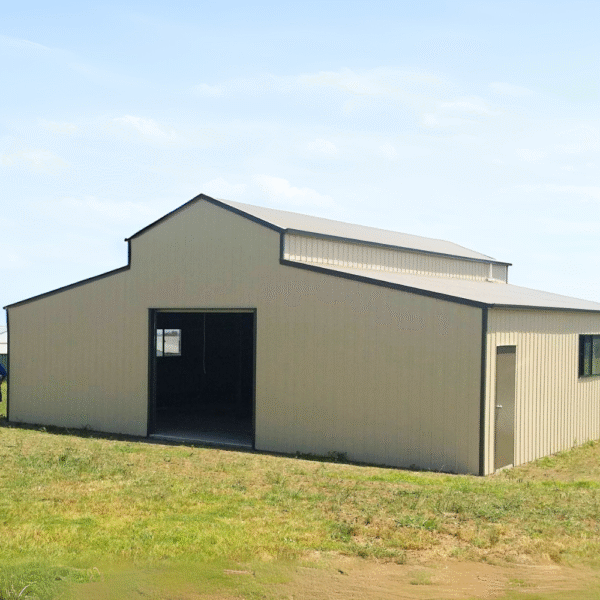

Designed for resilience and built with precision, this 9m (W) x 18m (L) x 3m (H) prefabricated steel structure from Ridge Steel Structure Co., Ltd. offers a comprehensive solution for a wide range of industrial, agricultural, or commercial applications.
Our expertly fabricated building kit includes all primary and secondary steel components, roofing, cladding, and fittings—ready for export with FOB Xiamen pricing.
Key Specifications

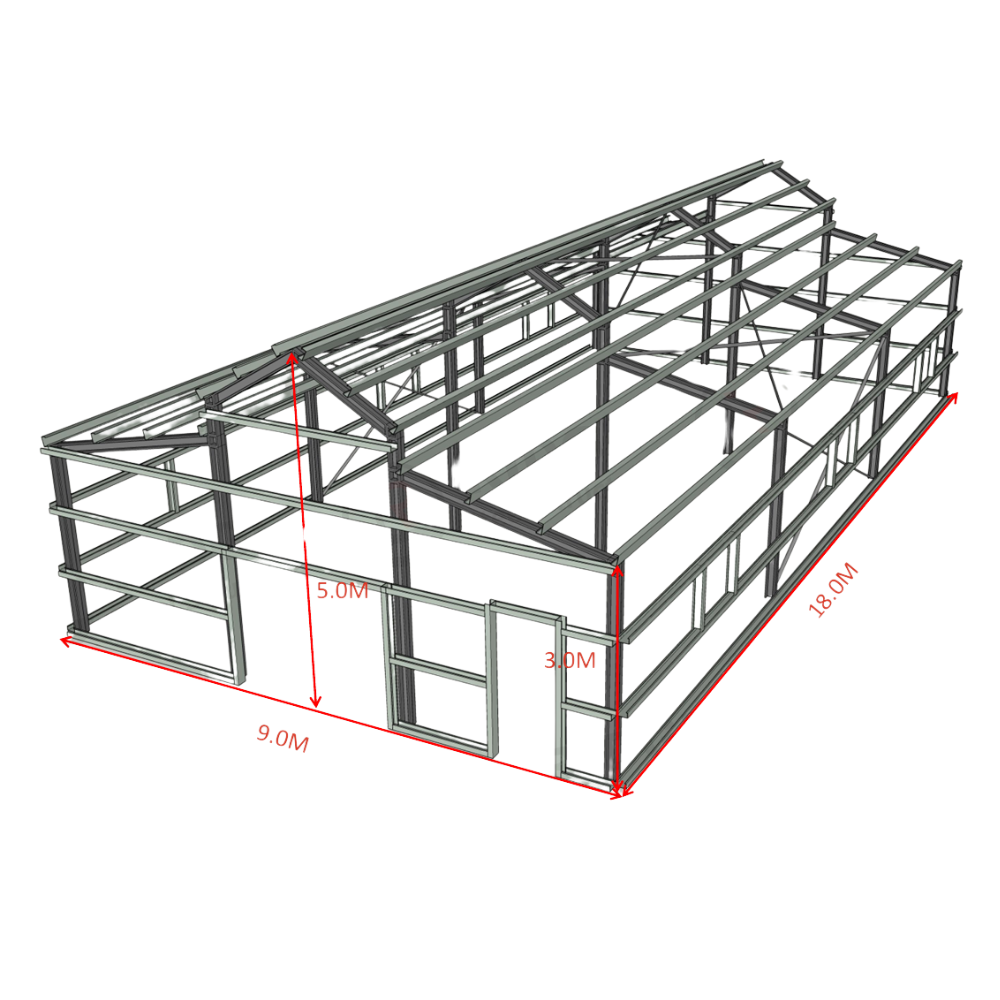

- Dimensions: 9m (width) x 18m (length) x 3m (height)

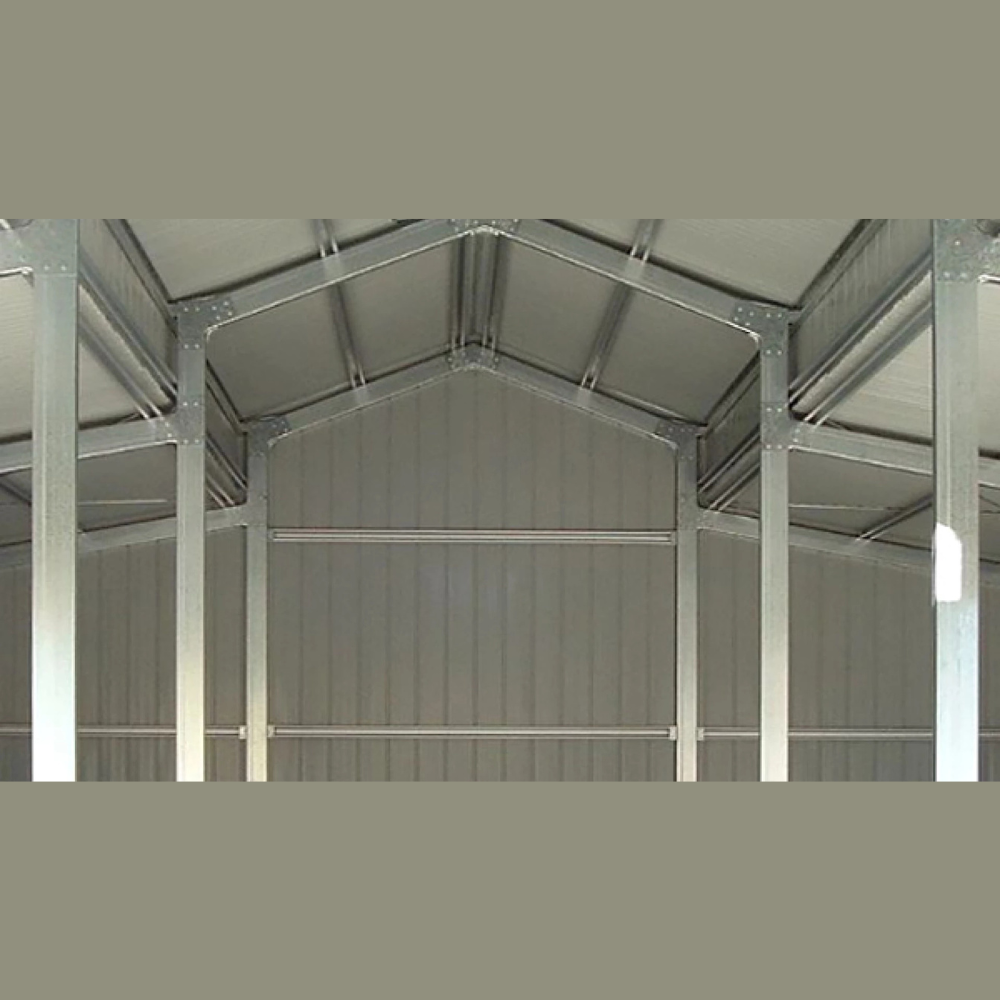

- Main Frame: H-beam steel structure (3.42T), shot-blasted (Sa 2.5), red-lead primed and finished with mild grey topcoat
- Roofing: 50mm thick foam sandwich panels – total coverage of 228m² ((Colorsteel-Colour of choice)
- Wall Cladding: 0.5mm single metal sheets – 195m² coverage (Colorsteel-Colour of choice)
- Purlins: C150 x 1.8mm galvanised C-purlins for roof and wall (460m total length)
- Flashings: Complete trims, ridge caps and gutters (282m)
Doors & Windows
- Roller Shutter Door (Electric): 3m (W) x 2m (H)
- Personal Access Door: 0.9m (W) x 2.1m (H)
- Aluminium Windows: 6 sets, each 0.9m (W) x 1.2m (H)
Accessories Included
- Anchor bolts (M24 x 850mm)
- High-strength bolts (M20, M16)
- Normal bolts (M12)
- Tied rods, downpipes, and all necessary fixings (screws, rivets, sealant)
Note:
- Designed for fast on-site assembly
- Installation services available upon request
- Foundation and civil works not included
- Can customise design and sizes
